Description

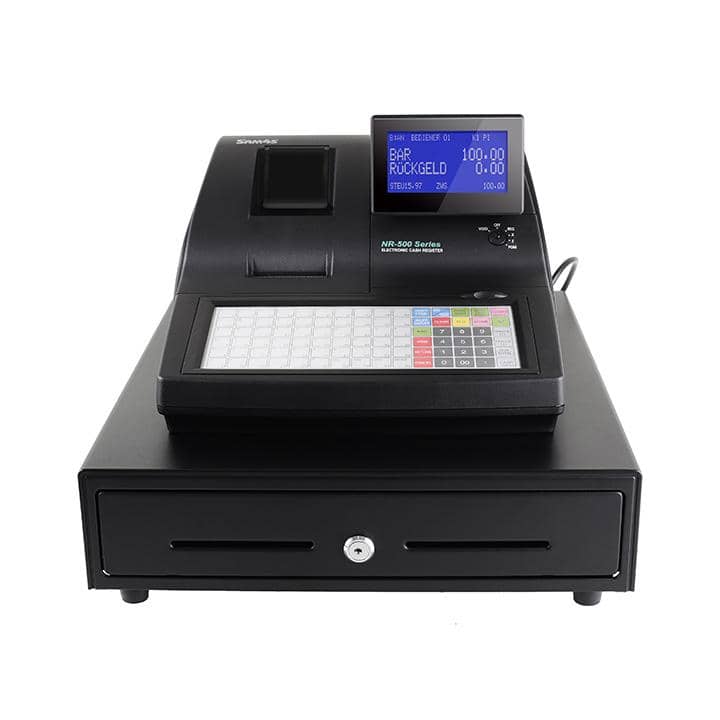

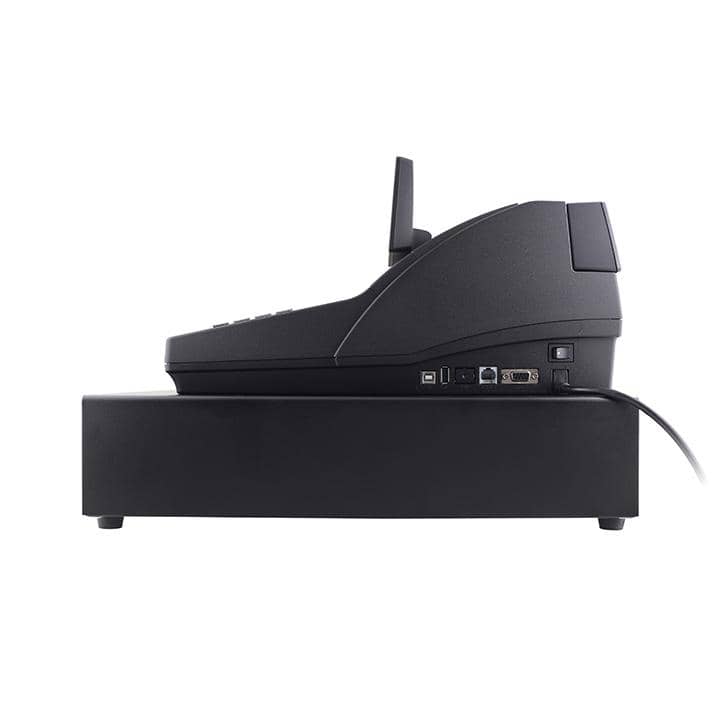

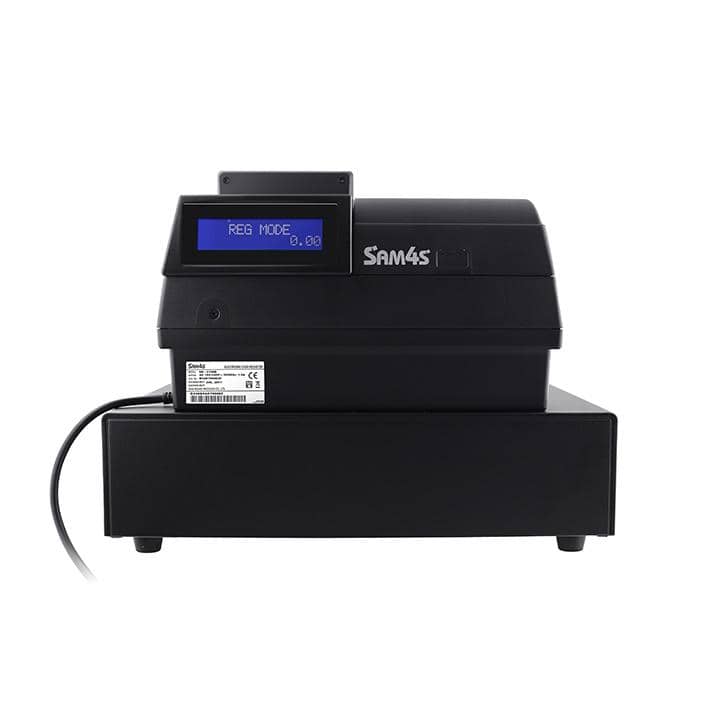

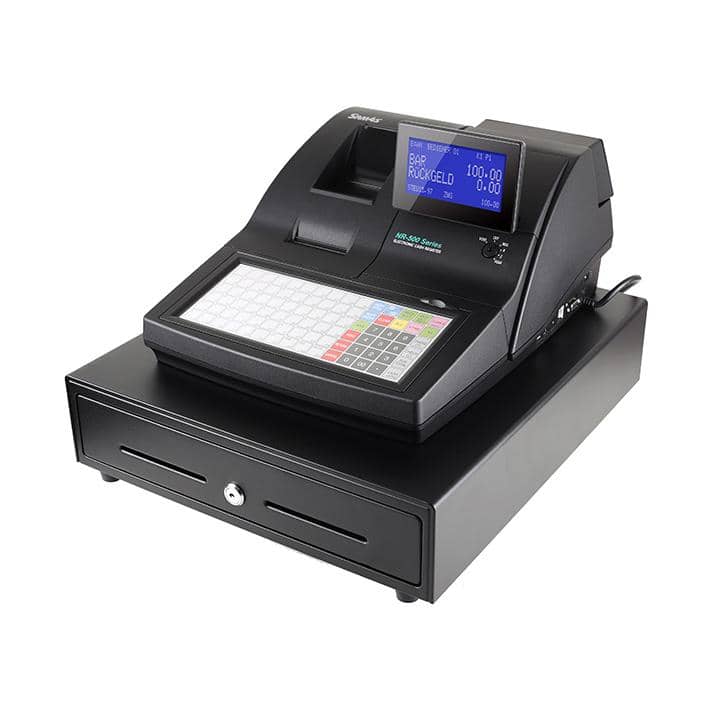

SAM4S Cash Register NR520

• Printer Type: 2 Station Thermal
• Speed: 70 mm/sec (18 lines/sec)
• Paper width: 57 mm (2EA)
• Paper End Sensor: YES
• Display  Operator: 192 x 64 Graphic LCD
• Customer: 16Character x 2Lines LCD
• keyboard: 90 Flat Keys
• Raised: 48 Raised Keys
• System CPU: 32bit (Rx-631, Renesas)
• Memory Program: 2MByte FLASH (CPU Internal)
• Data: 4Mbit SRAM
• Ext. (Opt.): 4Mbit SRAM (Total 8Mbit)
• Data Storage: 60 Days
• Interface: RS-232C, 3 Ports (RJ45 x 1, D/SUB 9Pin x 1, Extendable x 1)
• USB Host: 1 Port (Mass Storage/Scanner)
• Device: 1 Port (PC)
• (Host / Device Selectable)
• Network: TCP/IP (10/100 Mbps)
• GPRS Modem: Built-in
• SD CARD: SDHC Compatible
• Drawer Port: 1 Port
• Environment Condition Temperature: -5 ~ 45°C (23~113℉)
• Humidity: 30~80%RH
• Peripherals: Operator Key, Scanner(Serial/USB), Remote Printer, Slip Printer, kitchen Printer, Scale, Pole Display, EFT-POS Terminal
• Power: AC 100~240V/50~60Hz
• Weight Approx. 13kg
• S/W keyboard Departments: 12 / 60
• PLU’s: 1000(Max.8000)
• Group: 20(Max.99)
• Clerk: 10(Max.99)
• TAX, VAT, ADD ON, TAX TABLE
• Electronic Journal: YES (SD Card)
• Currency Conversion: YES
• Graphics Logo: YES
• Daily and Periodic Reporting: YES
• Table Management: YES
• PLU Descriptor size: 24
• F/W Update: PC/SD Card
• PC Utility: Ethernet/Serial/USB
